Automation and application solutions

Explore complete machine setups for selected products, including process steps, system modules and operating video.

Engineering route

Choose a solution by the problem chain

A solution combines material flow, positioning, contact, motion and release checks. It is not a promise that one photographed configuration fits every project.

  1. 01

    Define the product, decoration and required repeat condition.

  2. 02

    Separate sensing, motion, support and material-path functions.

  3. 03

    Use actual material trials to qualify contact and transfer.

  4. 04

    Keep precision, output and configuration unknown until measured.

01

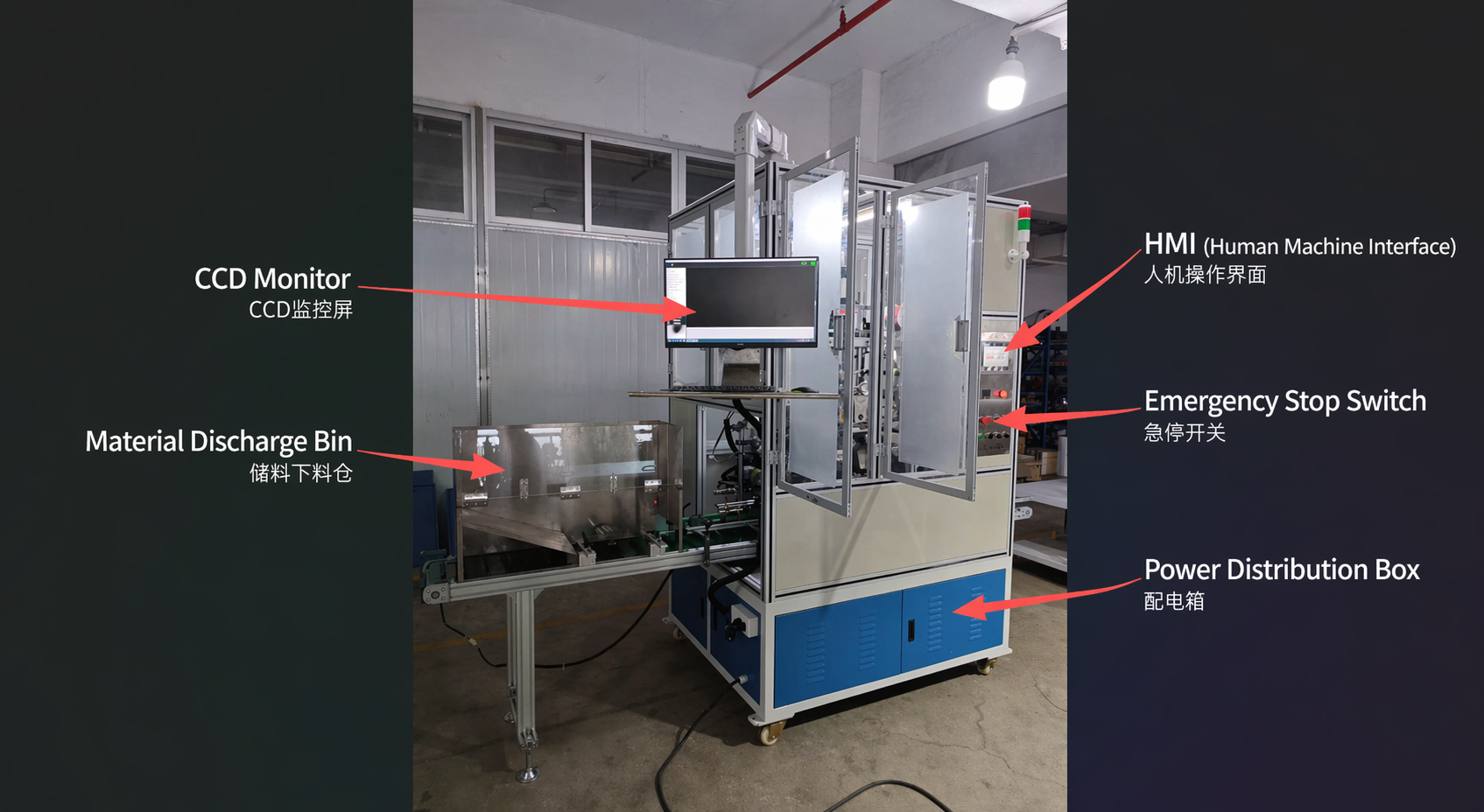

CCD Vision Cup Heat Transfer Solution

An automated cup-decoration route that combines indexed handling, CCD vision positioning, heat transfer and finished-part discharge.

02

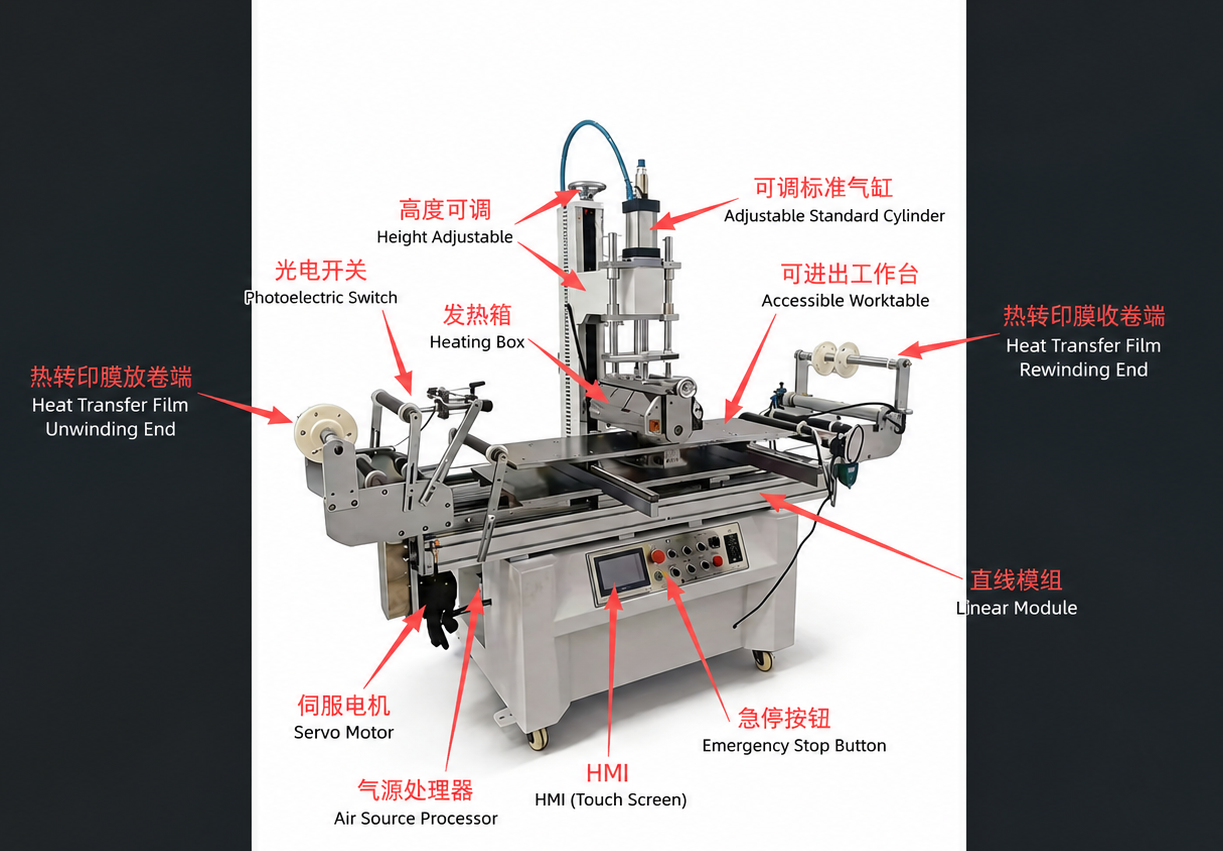

HF-1000 Large-Panel Heat Transfer Solution

A large-surface transfer route using a moving workbench, pressure-controlled heated roller, horizontal transfer module and coordinated film handling.

03

HF-100EC Compact Contour Hot Stamping Solution

A compact semi-automatic route for round and contour-following hot stamping on small parts, including R-corner surfaces.

04

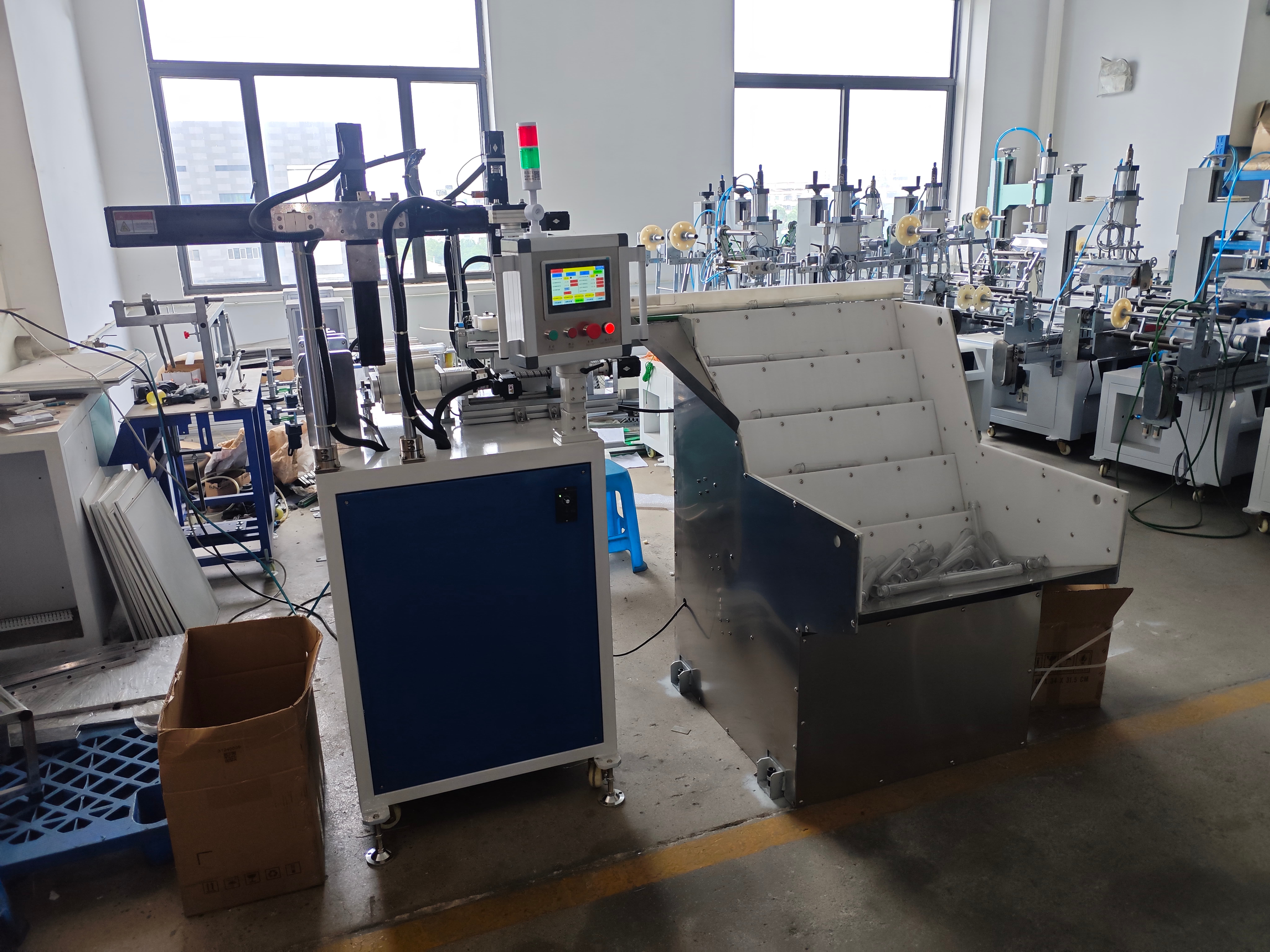

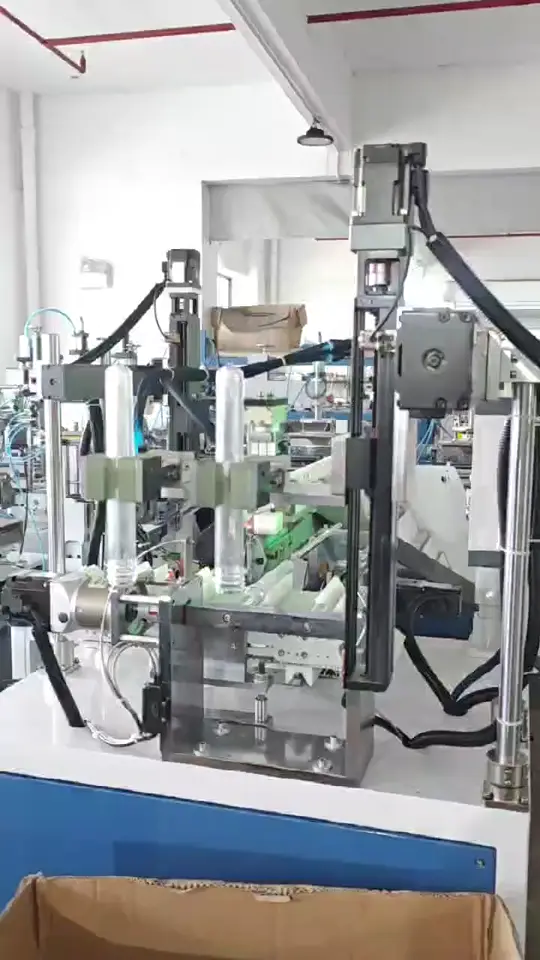

PET Preform Elevator, Orientation and Feeding Solution

A front-end feeding solution for blow-molding lines that lifts, buffers, checks orientation, reorients and transfers PET preforms to the receiving fixture.

05

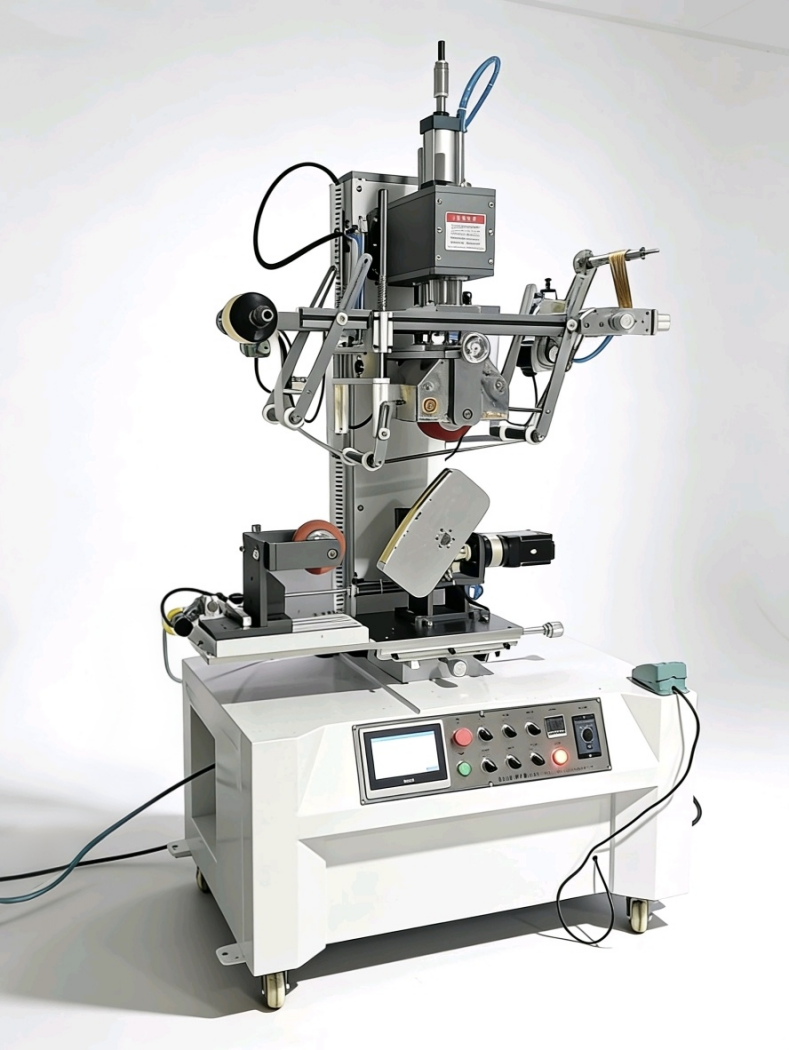

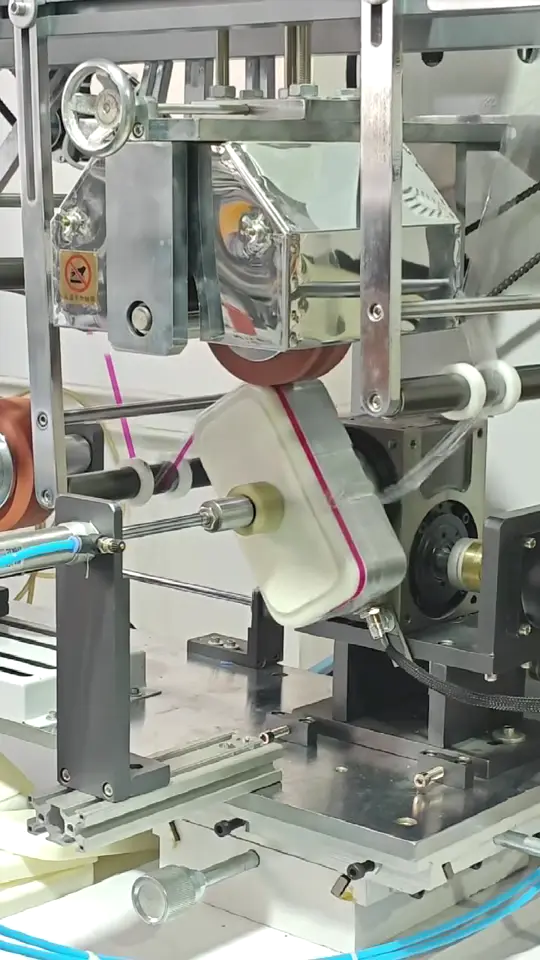

Profile-Learning Contour Hot Stamping Solution

A semi-automatic three-axis route that learns a product profile, stores a recipe and coordinates roller contact along suitable complex surfaces.

06

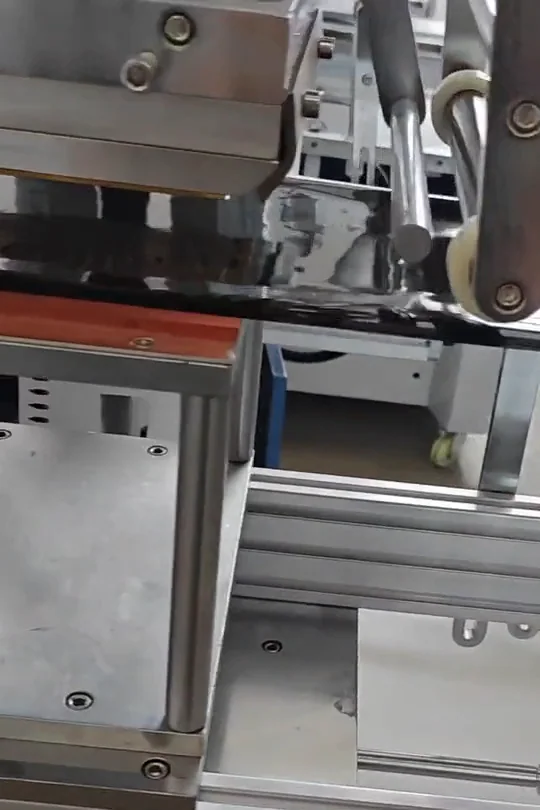

Registered Roll-to-Roll Flat Hot Stamping Solution

A continuous-web hot-stamping route that coordinates product-web transport, foil handling, registration sensing, servo indexing and flat-head contact.

07

Tapered Cup Heat Transfer Solution

A tapered-surface transfer route that uses cup geometry, fixture positioning and coordinated roller motion to control seam alignment and film contact.

08

Tapered Paint Pail Heat Transfer Solution

A tapered-pail decoration route that coordinates pail geometry, fixture rotation, roller contact and film movement for large conical container surfaces.
