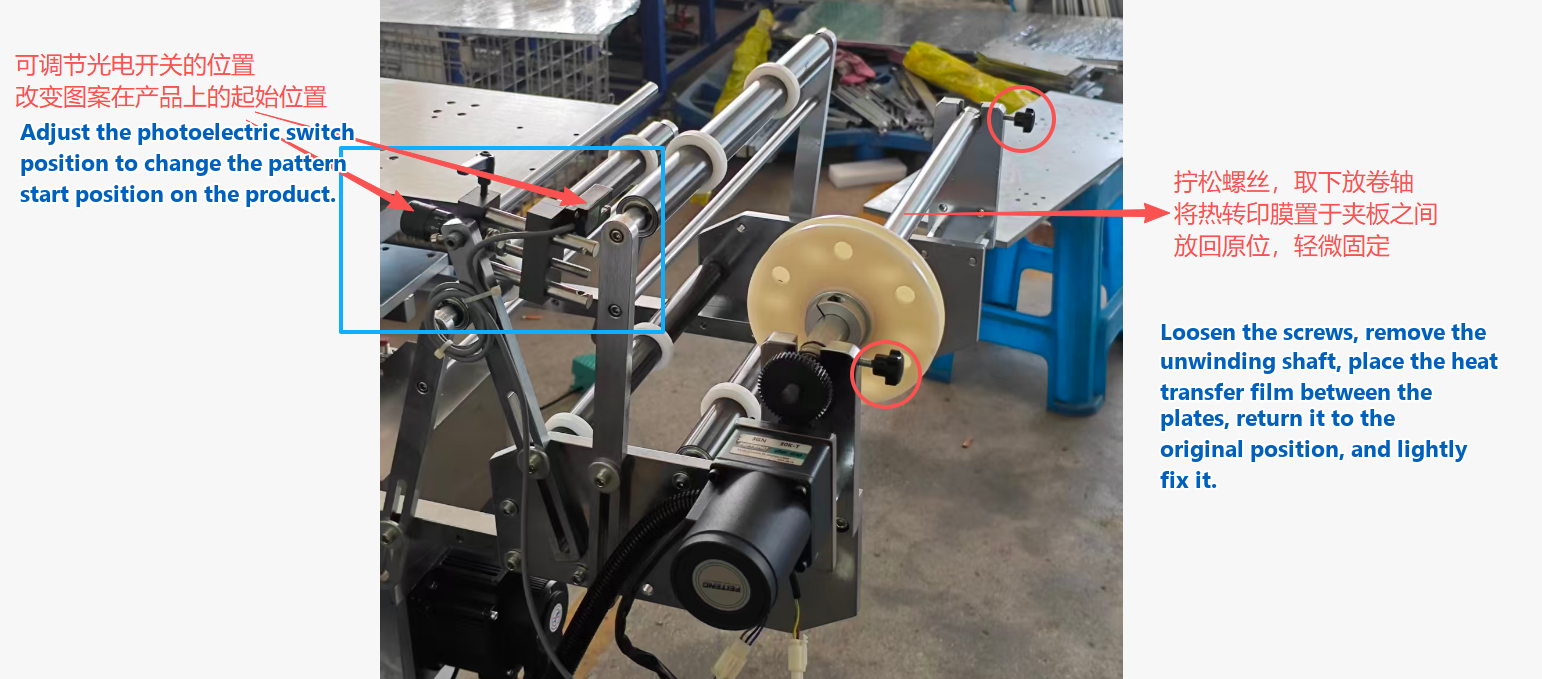

Flat press area and foil path
A close operating view of a flat press mechanism and plain metallic foil path.
What to watch: Trace the foil route into the working area and note the separation between handling and pressing zones.
Open video notesApplication solution
HF-1000 Large-Panel Heat Transfer Solution
A large-surface transfer route using a moving workbench, pressure-controlled heated roller, horizontal transfer module and coordinated film handling.
Solution overview
Production requirements
Large flat or gently contoured parts require stable contact pressure and controlled travel across a wider print area.
Process
- 01
Place and locate the part on the workbench.
- 02
Move the workbench into the transfer position.
- 03

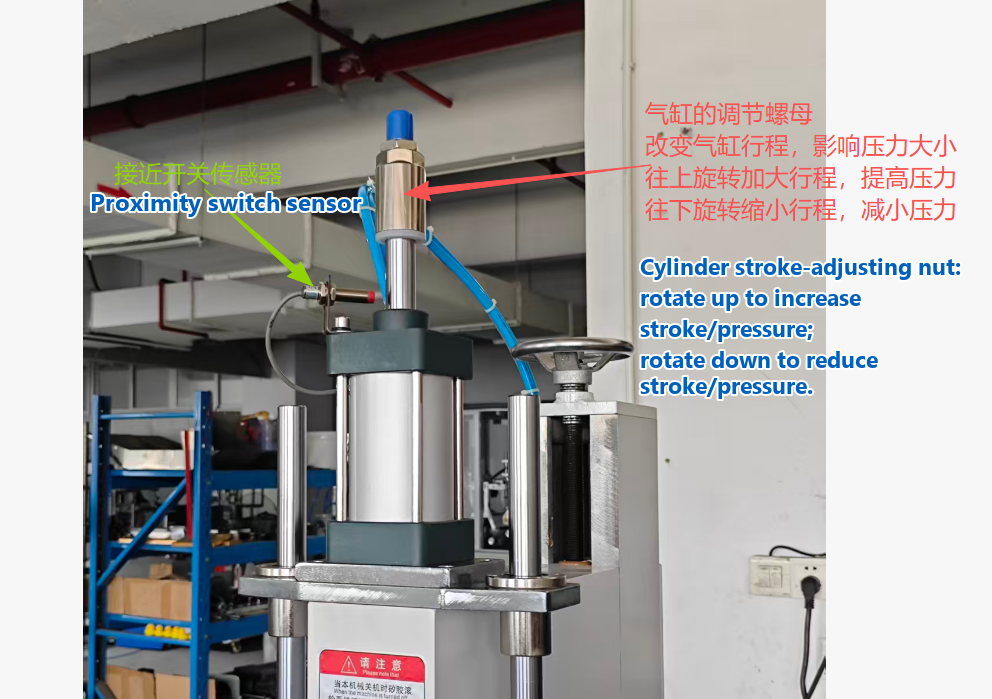

Lower the heated roller and establish stable contact.
- 04
Drive the horizontal module through the transfer stroke.
- 05
Separate and rewind the film, then return the mechanisms.
Machine views
Machine and mechanism photos
Factory video notes
See the mechanism and workpiece in motion
Flat workpiece and film positioning
A gloved hand positions a plain flat workpiece beside the film path.
What to watch: Compare the workpiece support edge with the incoming film direction before contact.
Open video notesLarge flat pressing area
A close mechanical view of movement inside a large flat pressing area.
What to watch: Observe the working clearance and the direction of the pressing movement.
Open video notesConnected evidence
Continue with the related machine, route and method
These routes are connected by selection conditions, process mechanism and validation order; they do not imply universal machine fit.
Related machines
Equipment used in this solution
Large Flat Heat Transfer Machine
Long flat plastic surfaces such as mahjong table side panels.
View machine detailsRelated applications
Products and production scenarios
Knowledge base
Principles and commissioning guides
Selection notes
Configuration details
- Product size, surface geometry and required print area must fit the confirmed machine configuration.
- Temperature, pressure, speed and cycle time are set during sample trials.
- Parts that may bend under pressure require additional fixture support.
Questions
Frequently asked questions
Which products suit this route?
It is intended for larger flat or gently contoured surfaces that can be supported and moved through a controlled roller-transfer stroke.
Why is fixture support important?
The fixture keeps the surface stable so roller pressure is distributed consistently without deforming the part.
Can the film route use photoelectric registration?
Photoelectric registration can be evaluated when the transfer film provides a suitable mark and stable sensing condition.
