Operating video
PT27SHF-100EC compact contour hot stamping operation
Operating video showing the compact contour hot stamping structure, supported fixture rotation and roller contact on a small rounded product.
Application solution

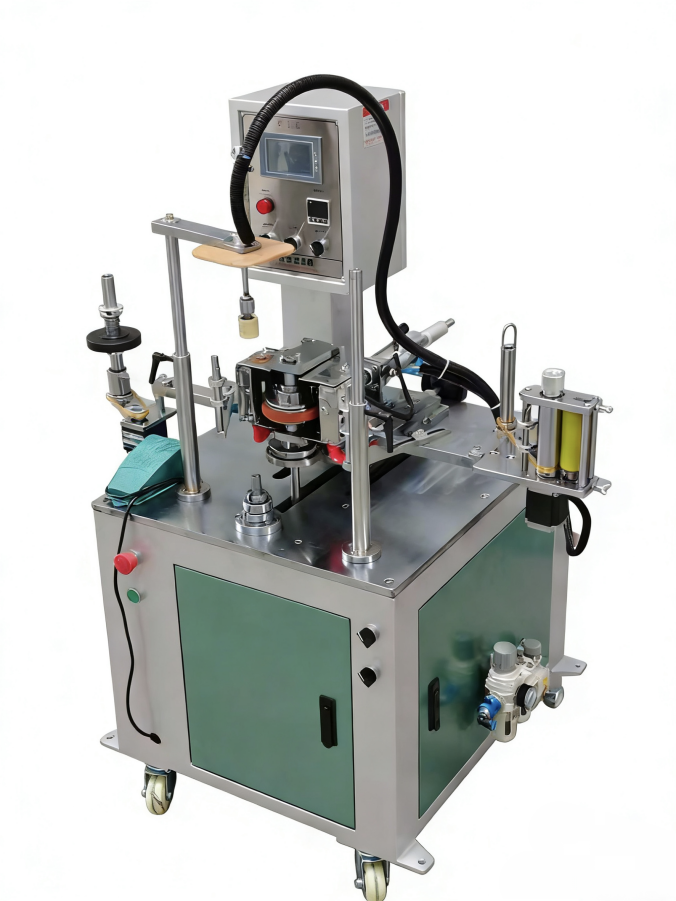

HF-100EC Compact Contour Hot Stamping Solution
A compact semi-automatic route for round and contour-following hot stamping on small parts, including R-corner surfaces.
Solution overview
Production requirements
Small products with round surfaces or edge radii need a fixture and stamping structure that can maintain contact while the part rotates.
Process
- 01
Install the product fixture and set the mechanical limits.
- 02
Thread foil and select round or contour-following mode.
- 03
Lower the heated roller onto the supported product.
- 04
Rotate the fixture through the required stamping path and rewind the foil.

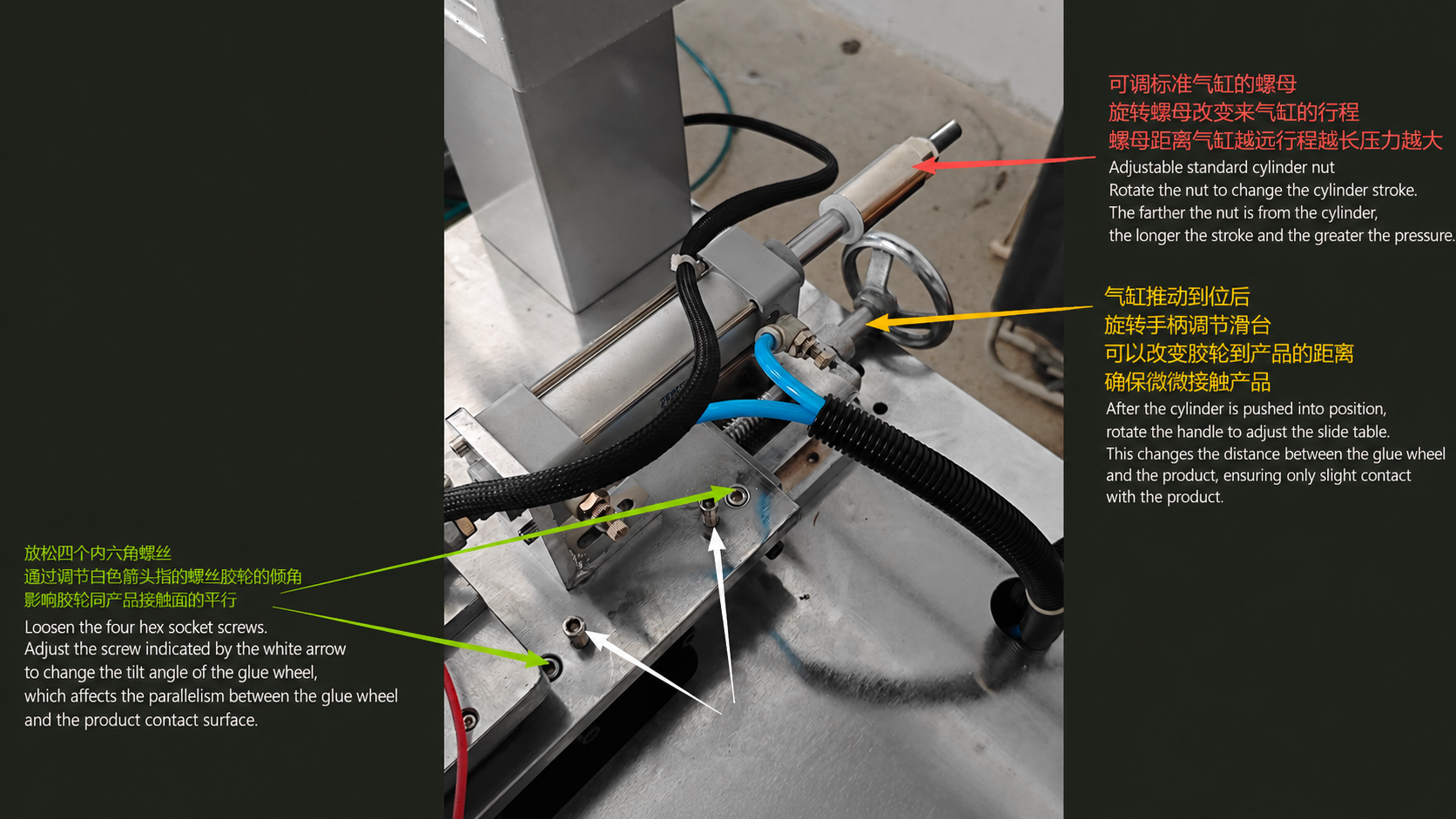

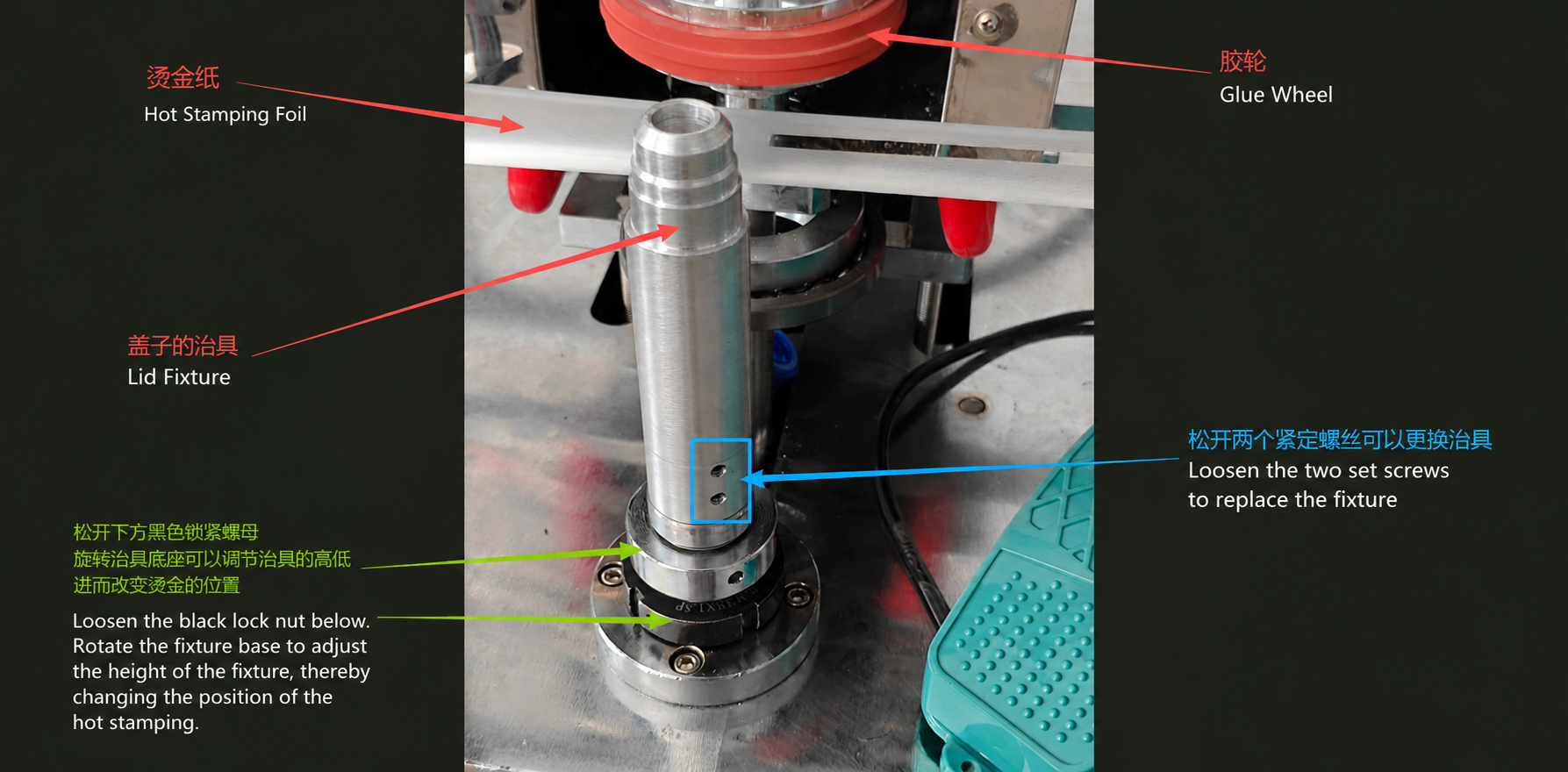

Machine demonstration
Machine photos and operating video
Related applications
Products and production scenarios
Knowledge base
Principles and commissioning guides
Selection notes
Configuration details
- Contour-following feasibility depends on the part radius, support and accessible stamping path.
- Foil compatibility and surface preparation must be checked with the actual material.
- The machine is semi-automatic and requires operator loading and unloading.
Questions
Frequently asked questions
What is the difference between round and contour-following modes?
Round mode follows a regular circular path. Contour-following mode is used when the roller must follow a suitable edge radius or changing contact geometry.
Does every R-corner part fit the same fixture?
Fixture support and the stamping path are matched to the product geometry.
Can a sample be tested before configuration?
Yes. Sample testing is used to confirm contact, foil release and visible edge quality.
Contact Hengfa
Tell us about your product
Send product photos, dimensions, material, artwork position and output target. We will recommend a suitable machine configuration.
