PT7STapered pail heat transfer operation close-up
Close-up operating video showing the transfer roller, film and tapered pail surface during a heat-transfer cycle.
Application solution
Tapered Paint Pail Heat Transfer Solution
A tapered-pail decoration route that coordinates pail geometry, fixture rotation, roller contact and film movement for large conical container surfaces.
Solution overview
Production requirements
Large tapered pails combine changing circumference with a wider print band, making seam alignment, film tension and product support more demanding than cylindrical transfer.
Process
- 01
Confirm pail dimensions, print height and required seam position.
- 02
Install and center the pail on the supporting fixture.
- 03

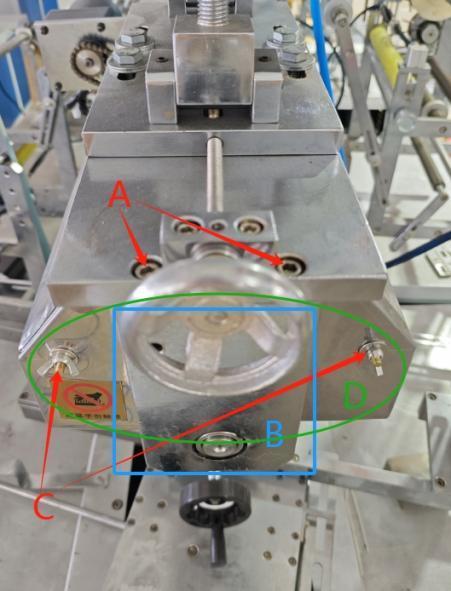

Thread the transfer film and establish stable registration and tension.
- 04
Coordinate fixture rotation, roller contact and tapered geometry compensation.
- 05

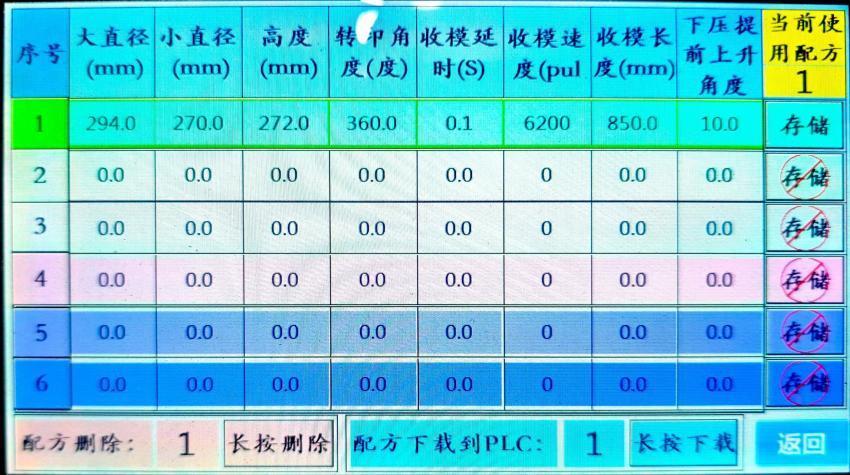

Inspect the seam and surface, then save the confirmed product recipe.
Machine demonstration
Machine photos and operating video
Connected evidence
Continue with the related machine, route and method
These routes are connected by selection conditions, process mechanism and validation order; they do not imply universal machine fit.
Related machines
Equipment used in this solution

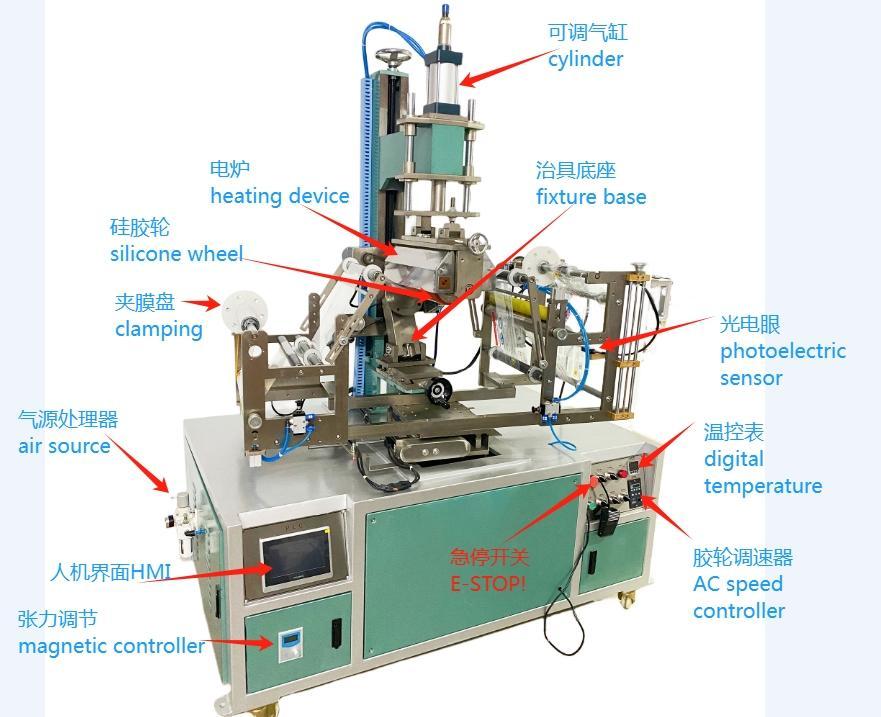

Tapered Pail Heat Transfer Machine
Larger tapered pails such as plastic paint buckets, coating buckets and sauce buckets.
View machine detailsRelated applications
Products and production scenarios
Knowledge base
Principles and commissioning guides
Commissioning
Checks before the first article
- Confirm both pail diameters, print height, handle clearance and fixture support before threading the film.
- Check that the pail remains centred while the fixture rotates through the transfer path.
- Prove registration, film tension and rewinding over several cycles before applying full transfer conditions.
Selection notes
Configuration details
- Pail taper, stiffness, handle geometry and printable area determine the fixture and transfer setup.
- The artwork and film layout must match the developed geometry of the tapered surface.
- Output and print quality depend on the confirmed pail, fixture and process configuration.
Questions
Frequently asked questions
How is this different from cylindrical pail transfer?
The upper and lower circumferences differ, so the machine must coordinate geometry and motion across the print height.
How does the handle area affect the setup?
The handle and its mounts can affect fixture access, roller clearance and the available print path.
Can the recipe be reused for another pail?
Only after dimensions, fixture support, film layout and process conditions are confirmed to match.
Contact Hengfa
Tell us about your product
Send product photos, dimensions, material, artwork position and output target. We will recommend a suitable machine configuration.
