Machine features
Configuration and operation
Automatic taper compensation calculates the transfer path from the large diameter, small diameter and pattern height.
Machine overview

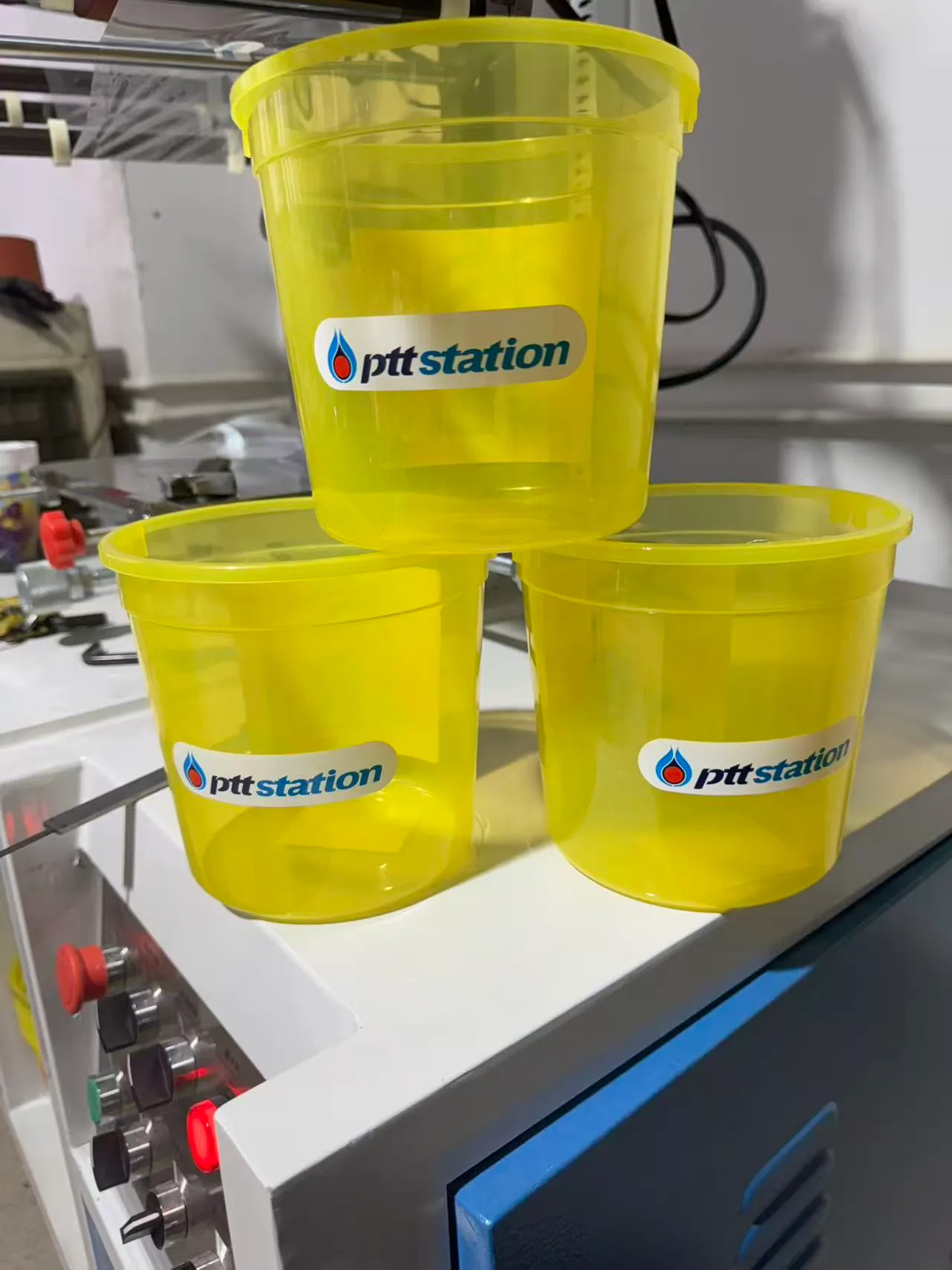

HF-taper300
Tapered Cup Heat Transfer Machine
Small and medium tapered containers such as PP cups, flower pots and small beach buckets.
Application profileHeat transferSemi-automatic
Suitable workpieces
Suitable workpieces
- Tapered plastic cups and small containers
- Products with different top and bottom diameters
Machine strengths
Machine strengths
- Angled fixture follows the tapered wall
- Film path and starting position can be aligned to the developed artwork
How the machine works
How the machine works
- 01
Mount and centre the tapered cup
- 02
Align the developed transfer film
- 03
Rotate through the transfer cycle
- 04
Inspect seam position and coverage
Factory video notes
See the mechanism and workpiece in motion
Tapered cup: film movement and roller contact
An edited operating clip showing transfer-film movement, roller contact and a tapered cup during decoration.
What to watch: Compare the film route with the changing cup diameter and the supported contact area.
Open video notesConnected evidence
