Machine features
Configuration and operation
Five servo-controlled motions coordinate pressure, film handling, fixture positioning, linear stroke and rewinding.
Machine overview

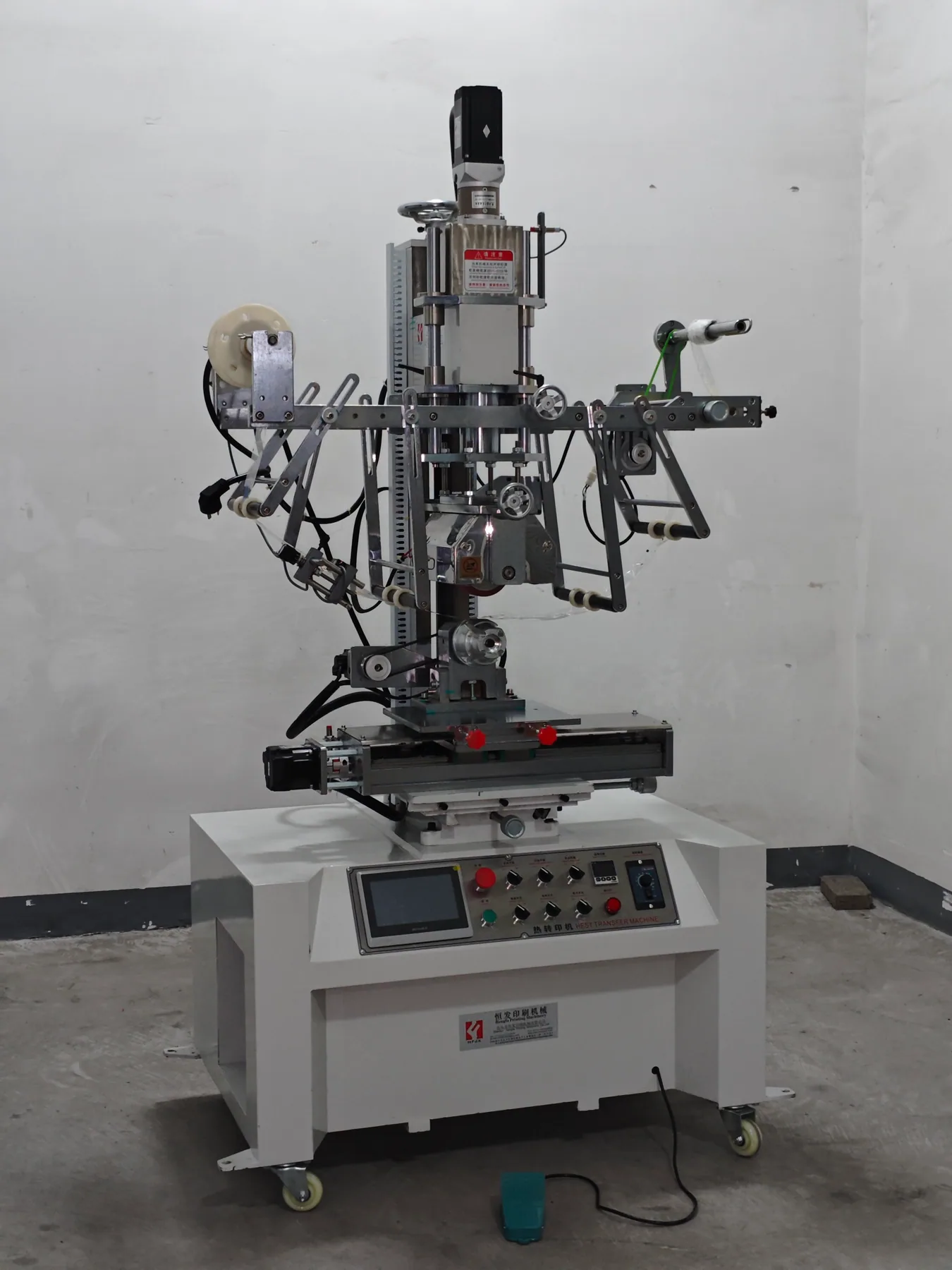

HF-300S5
Servo 5-Axis Heat Transfer Machine
Flat and round products that require repeat-position heat transfer.
heat-transfersemi-automatic
Suitable workpieces
Suitable workpieces
- Flat and round parts requiring coordinated positioning
- Products with repeatable multi-axis transfer paths
Machine strengths
Machine strengths
- Five servo axes coordinate product, roller and film movement
- Stored motion settings support repeat production
How the machine works
How the machine works
- 01
Install and reference the fixture
- 02
Set the product and film positions
- 03
Coordinate the transfer motions
- 04
Inspect position and transfer coverage
